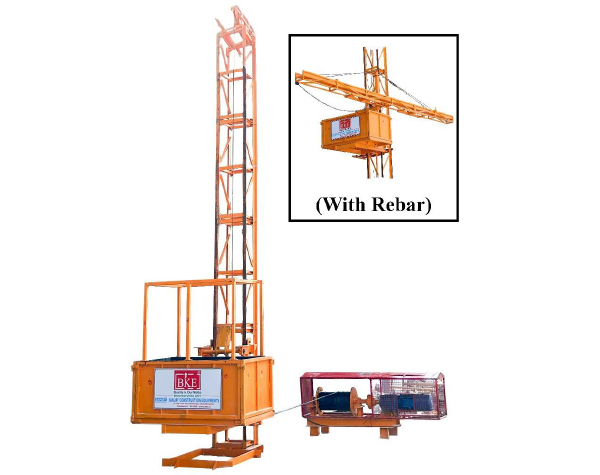

Multi Function Hoist
Balakrishna Engineering is a prominent & leading manufacturer from Coimbatore, we offer multi function hoist.
Our multi function hoists can be attached to the scaffolding or fixed directly to the building.
A multi function hoist is the safest, fastest, and easiest way to transport passengers and/or goods vertically.The Builder’s Hoist is designed for building sites and various construction workplaces such as warehouse, buildings, storage areas, lift maintenance, factories in general, as well as domestic applications.
SpecificationsVideoRequest a Quote
Specifications
| No | Description | Qty |
|---|---|---|
| 1 | Gross Weight Capacity | 1000Kgs |
| 2 | Pay Load Capacity | 750Kgs |
| 3 | Make Power | 10H.PElectricalMotor |
| 4 | Motor Make | LHP |
| 5 | Voltage | 415VAC |
| 6 | Frequency | 50HZ |
| 7 | Protection | IP55 |
| 8 | Duty | S1 |
| 9 | Gear Box | Type Helical |
| 10 | O/P rpm | 63 |
| 11 | Break Make | Emco Lenze DC |
| 12 | Brake Coil Voltage | 190DC |
| 13 | Wire Rope in Drum | For30mtrsheight,150mtrs12mm Rope |
| 14 | Bucket Size(L*W*H) | 1450*900*720mm |
| 15 | Wire Rope | 12mm6*36UshamartinMake |
| 16 | Wire Rope in Drum | 150mtrs |
| 17 | Total Height | 30mtrs |
| 18 | Landing Height | 27mtrs |
| 19 | Top piece, Bottom piece | Top piece with Pulley .Bottom |
| 20 | Tower Structure | 1.5mtrs |
| 21 | Mast Angle | 50*50*6Front&Rear |
| 22 | Mast Thickness | 6mm |
| 23 | Trolley Speed | 30mtrs/Min. |
| 24 | Chanel Platform | Fabricated |
| 25 | Winch Dimensions | 2300mm*870mm*750mm |
| No | Control Panel | |
| 1 | IP rating | IP55 |
| 2 | Contactors | Schneider or equivalent |
| 3 | MCB | 40A4Pole |
| 4 | Over Load relay | 12–18amps |
